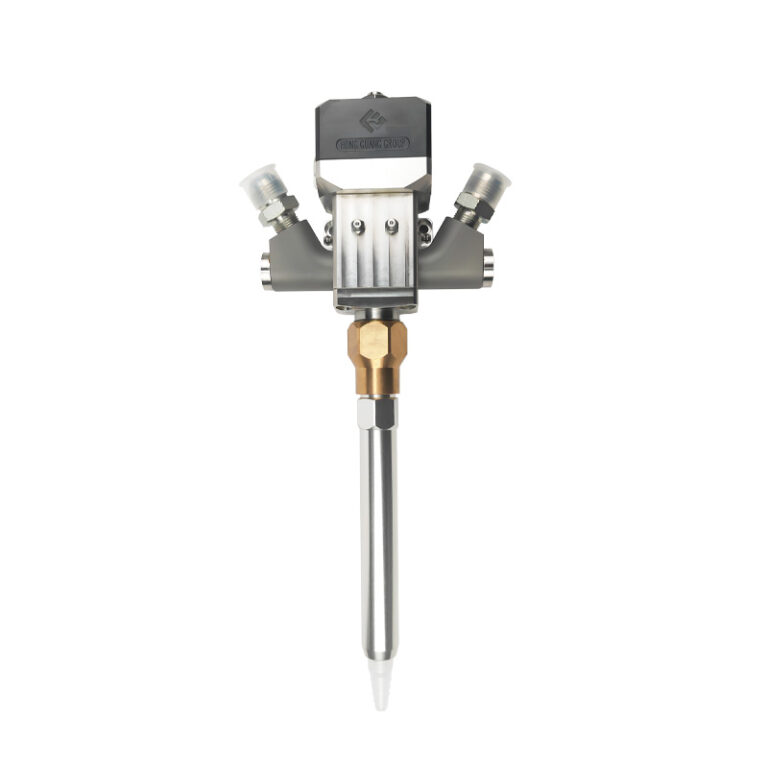

Two-component Needle Valve VD2KM3 Specifications Main Parameters Product name Product model Pressure ratio Applicable viscosity Interface size Two-component ejector valve VD2KM3 68:1 Applicable to most colloids NPT1/4 Description Related Products

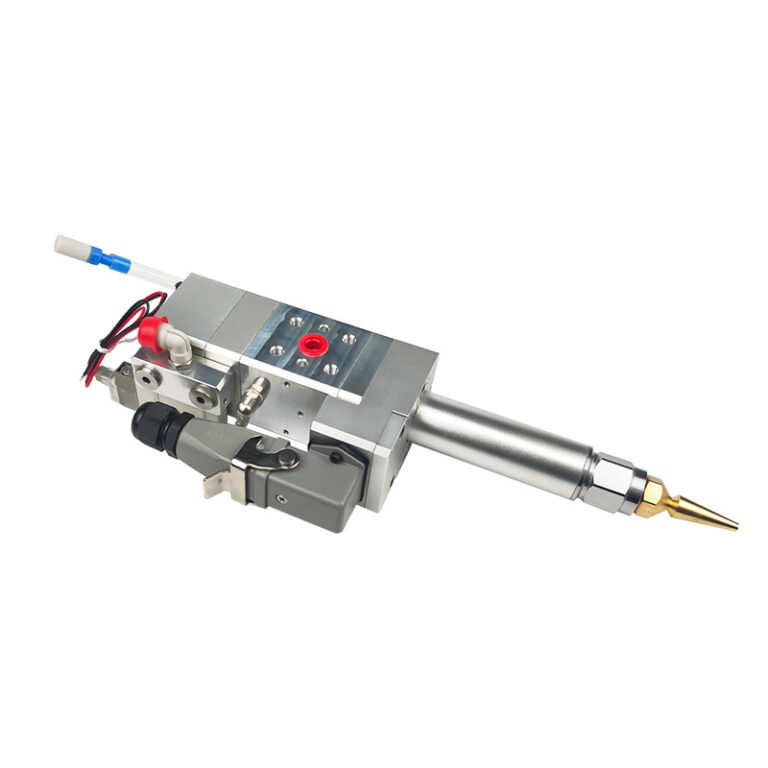

Electric Heating Gluing Valve VDEC5H Specifications Main Parameters Model Rated air pressure (MPa) Air interface specification (Rc) Rated fluid pressure (MPa) Rated flow rate (ml/s) Notes VDMF6H 0.3-0.8 φ6*1 34 ≥40 Valve body integrated solenoid valve VDEC5H 0.3-0.8 φ6*1 28 0.4-32 Valve body integrated solenoid valve Other Parameters Item VDMF6H VDEC5H Notes Feed port specifications…

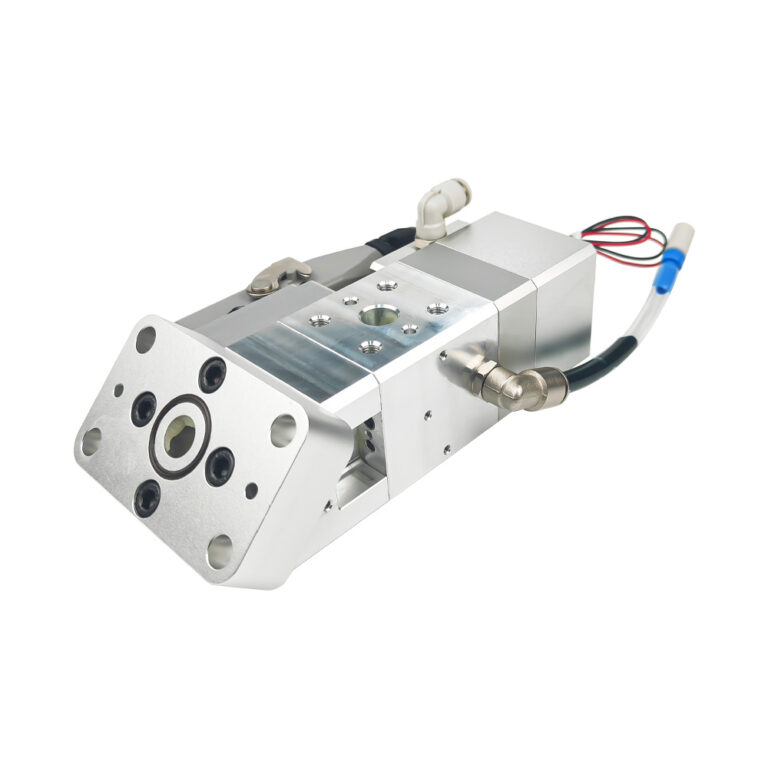

Heated Filling Valve VDMF6H Specifications Main Parameters Model Rated air pressure (MPa) Air interface specification (Rc) Rated fluid pressure (MPa) Rated flow rate (ml/s) Notes VDMF6H 0.3-0.8 φ6*1 34 ≥40 Valve body integrated solenoid valve VDEC5H 0.3-0.8 φ6*1 28 0.4-32 Valve body integrated solenoid valve Other Parameters Item VDMF6H Notes Feed port specifications 3/8NPT(f); Comes…

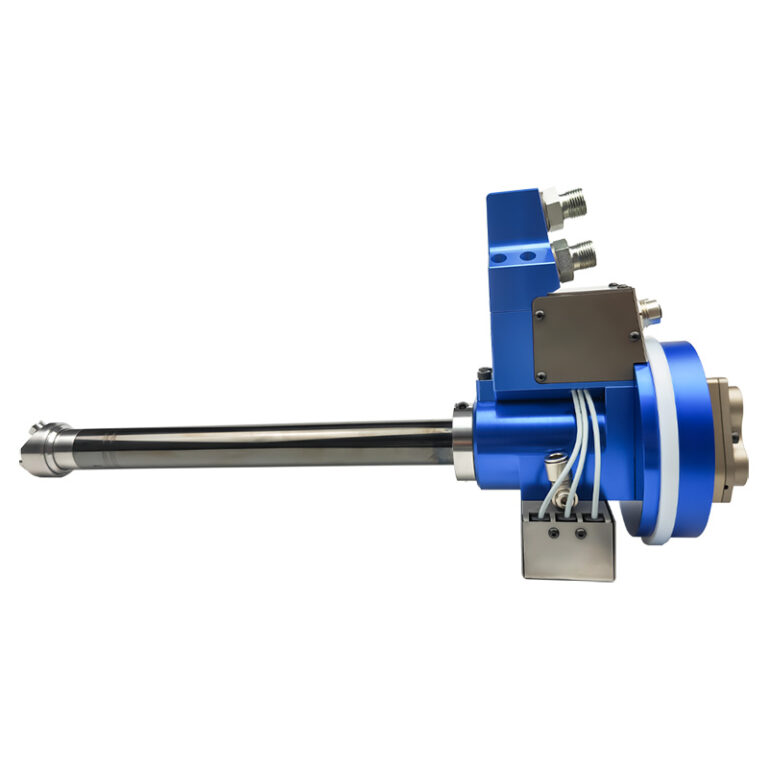

3D Glue Gun GV3558 Specifications Main Parameters Parameter name Parameter information Notes Weight 6kg Length Depends on nozzle type Gun diameter 30mm Nozzle diameter 48mm Rotation height 150mm Installation Robot mounting flange Maximum working pressure 250bar Maximum working temperature 65℃ Feed port Male thread 3/8 BSP connector Circulation port Male thread 3/8 BSP connector Air…

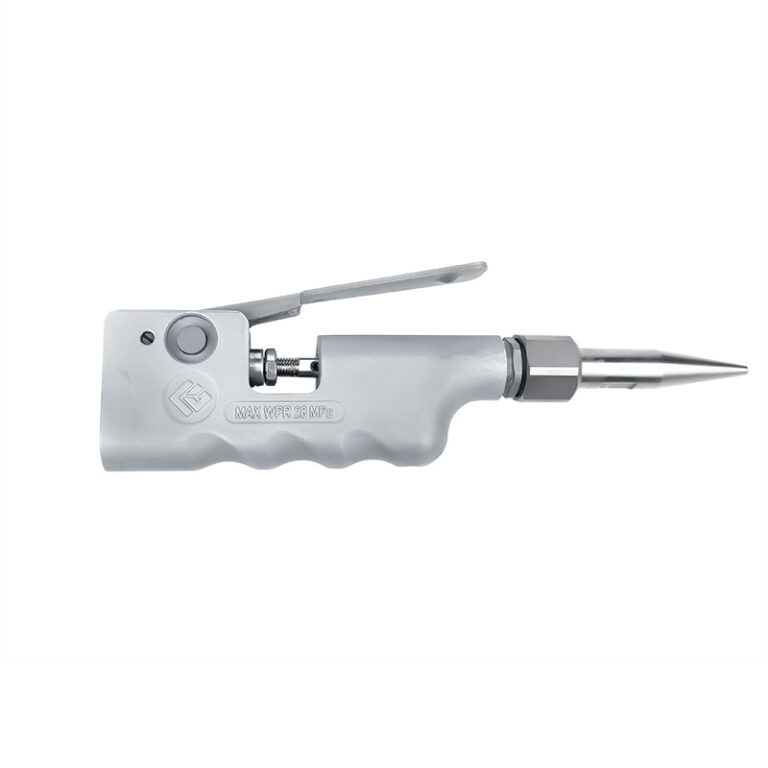

Manual Glue Gun GM50HG Specifications Main Parameters Manual glue gun GM50HG is a hand-operated tool designed for precise glue application. It is suitable for small-scale or finely controlled construction of sealants, glues and other materials. Model Rated working pressure(MPa) Rated operating temperature (℃) Gun body material Valve core structure Flow parameters (LPM) Recommended fluid viscosity…

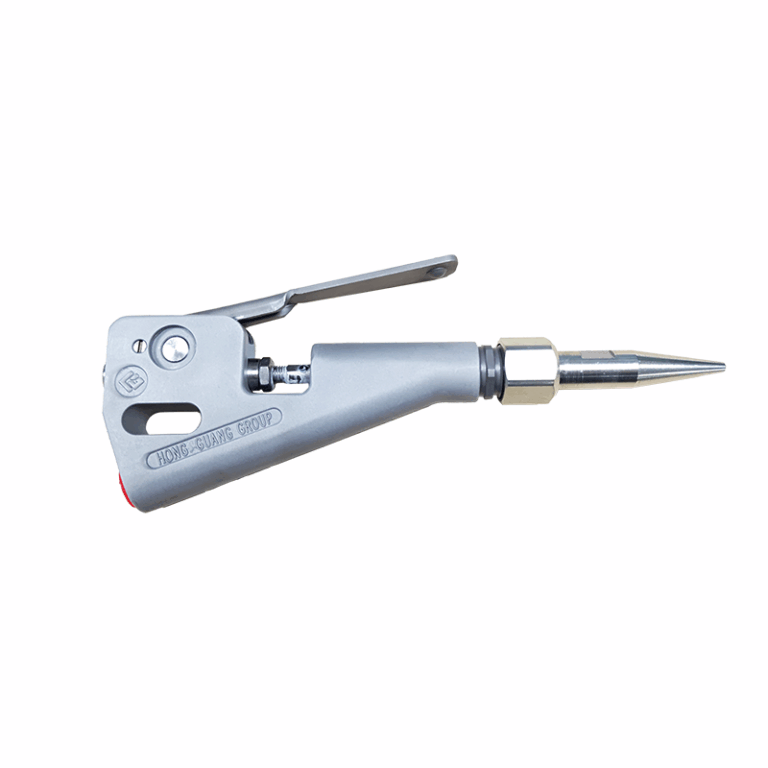

Portable Manual Glue Gun GM5000 Specifications Main Parameters Model Rated working pressure(MPa) Rated operating temperature (℃) Gun body material Valve core structure Flow parameters (LPM) Recommended fluid viscosity (Pa*s) Weight Notes GM5000 23 15~50 AL Alloy Ball 4.5 ≤200 325 GM50HG 28 Notes 14MPa, 20# oil Not including nozzle Other Parameters Item GM5000 GM50HG G3W200…

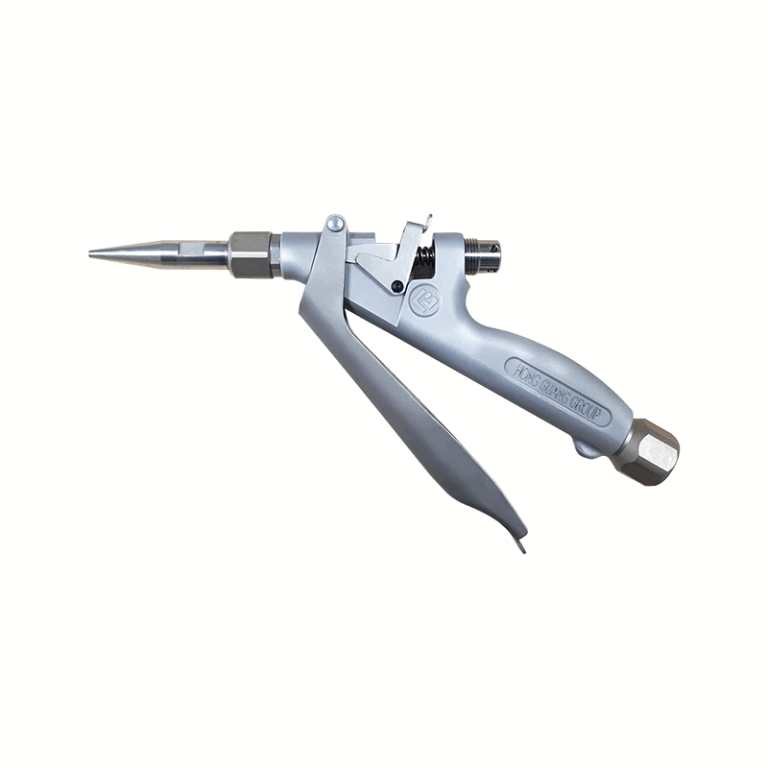

Down Type Manual Glue Gun GH4000 Specifications Main Parameters Model Rated working pressure (MPa) Rated working temperature (℃) Gun body material Valve core structure Flow parameter (LPM) Recommended fluid viscosity (Pa*s) Weight (g) Notes GH4000 41 15~50 AL Alloy Ball ≥4.5 ≤300 580 Notes 14MPa, 20# oil Nozzle not included Other Parameters Item GH4000 Notes…

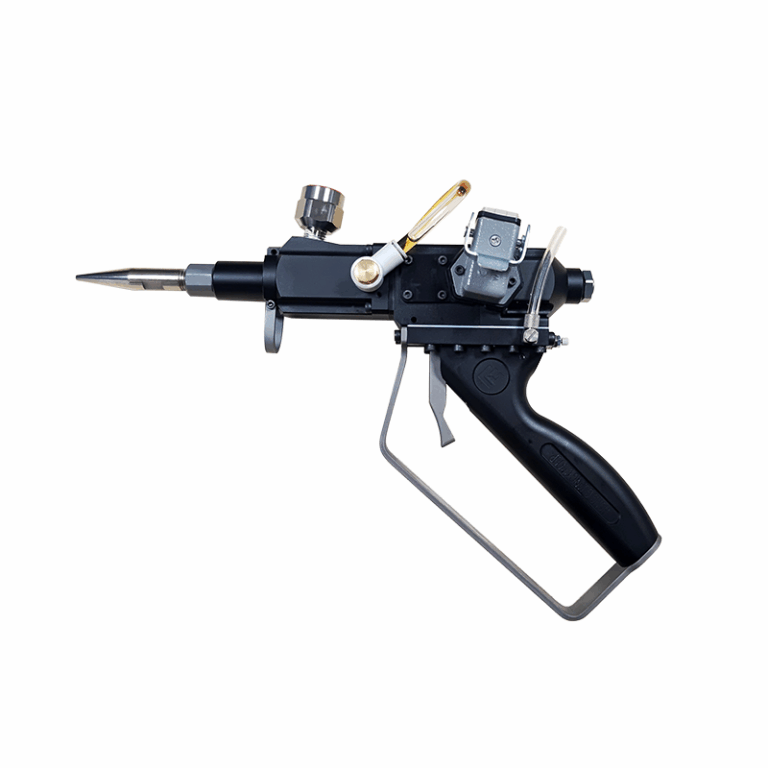

Manual Gas Drive Heating Gun GHA000 Specifications Main Parameters Model Rated air pressure(MPa) Recommended fluid pressure (MPa) Maximum fluid pressure (MPa) Recommended fluid viscosity (Pa*s) Rated heating power(W) Notes GHA000 0.3~0.8 ≤32 41 ≤1000 200 Notes Other Parameters Item GHA000 Notes Paint interface Gun body interface: NPT (f) 1/4Adapter: NPT (f) 1/2 Standard adapter Air…

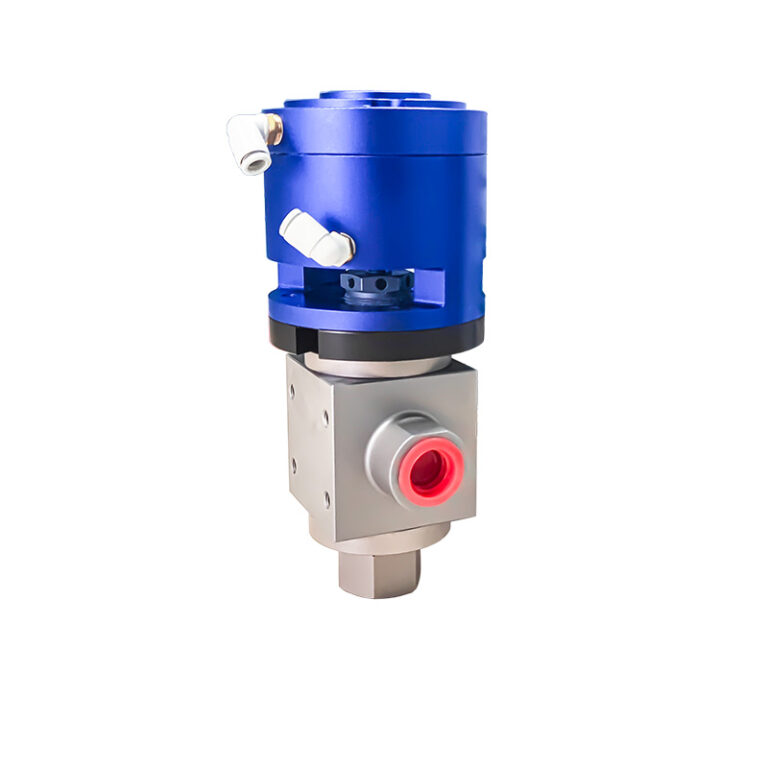

Automatic Rotating Glue Gun GR4000 Specifications Main Parameters Model Rated air pressure MPa Recommended fluid pressure MPa Maximum fluid pressure MPa Recommended fluid viscosity Pa*S Spindle rotation torque N*m Notes GR4000 0.4~0.8 ≤30 41 ≤1000 ≤3 GR400H Notes Air pressure related Air pressure related No load Other Parameters Item GR4000 GR400H Notes Paint interface 1/2npt(f)…

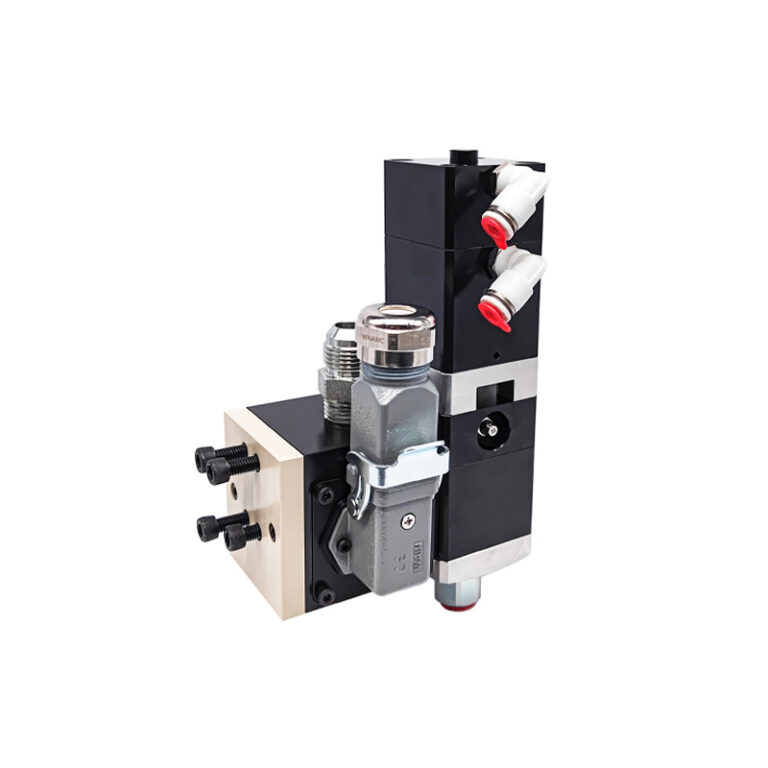

Automatic Glue Gun GA60EH Specifications Main Parameters Rated air pressure(MPa) Air pressure specification (Rc) Rated inlet pressure (MPa) Rated outlet pressure (MPa) Remarks GA60EH 0.4~0.8 1/8 34 24 Electric heating gun seat, gun body assembly GA6000 0.4~0.8 1/8 34 24 Gun body subassembly GA6EHO — — 34 34 Electric heating gun seat subassembly Remark …
