Robot Arm 3D Glue Gun Glue Supply System
This system mainly combines a 3D glue gun with a quantitative system for use in a paint shop. It consists of a glue pump, a quantitative machine, a pressure reducing valve, a robotic arm, and a 3D glue gun.
What You Get with It
- Increased Productivity
Our dispensing solutions for paint shop contribute to a highly productive manufacturing process - Repeatable high quality
We strive for perfect dispensing results and repeatable high-quality applications - Easy to Use
Our system solutions are easy to set-up, easy to use and easy to maintain
System Components
Glue Pump
The glue pump is the basic unit of the glue supply system, providing sufficient pressure for the glue medium. Our glue pump has a pressure ratio of 68:1, and you can choose a 5-gallon or 55-gallon glue pump according to your needs. When supplying two guns, the glue pump’s pressure supply capacity must meet certain requirements.
High-pressure fluid regulators
Generally, it is at the glue pump outlet that the outlet pressure of the colloid is stabilized so that it can reach the dosing machine smoothly.
Quantitative Machine
It is mainly composed of a servo motor, a reducer, a transmission structure and a cylinder. According to different production processes, different capacity dosing machines need to be selected. Single-cylinder system or double-cylinder system can be selected according to needs.
Robotic Arm
The robotic arm and the dosing machine work together to apply glue, which can achieve stable gluing and ensure the quality of the colloid.
Pipeline
There are two types of pipes: gas pipes and rubber pipes. Rubber pipes can generally be divided into heating pipes and ordinary pipes according to the properties of the colloid.

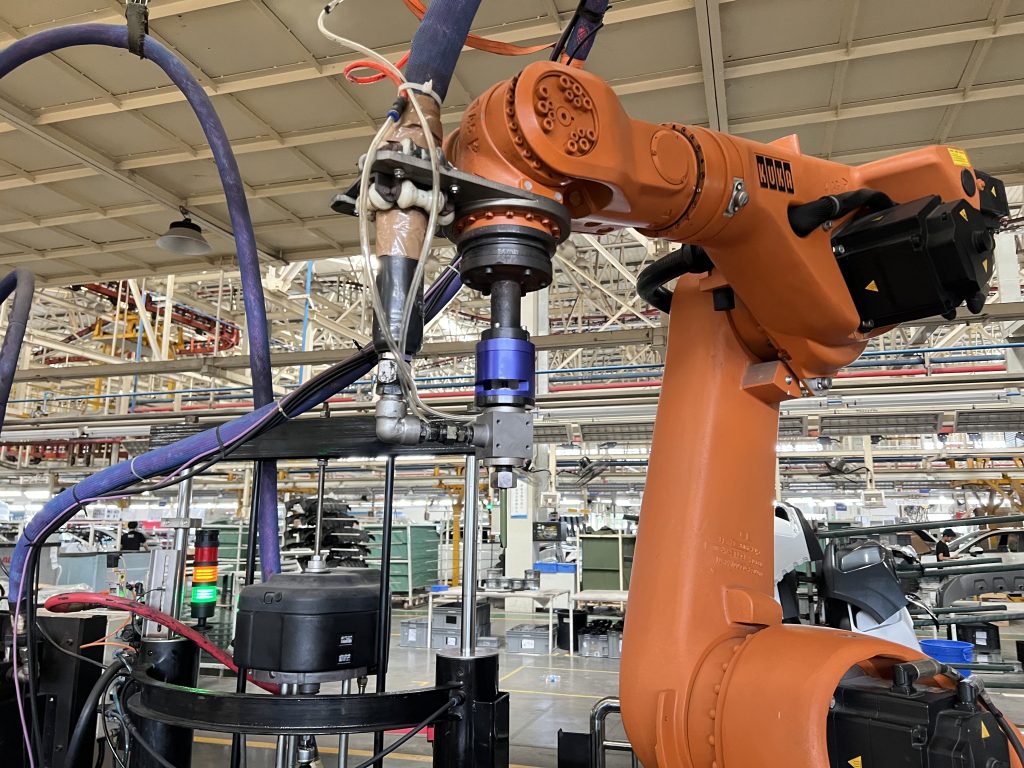

Glue Gun
In this system, a 3D rotating glue gun is used. The glue gun works together with the dosing machine and the robotic arm to achieve stable glue application, save colloid and improve efficiency.
