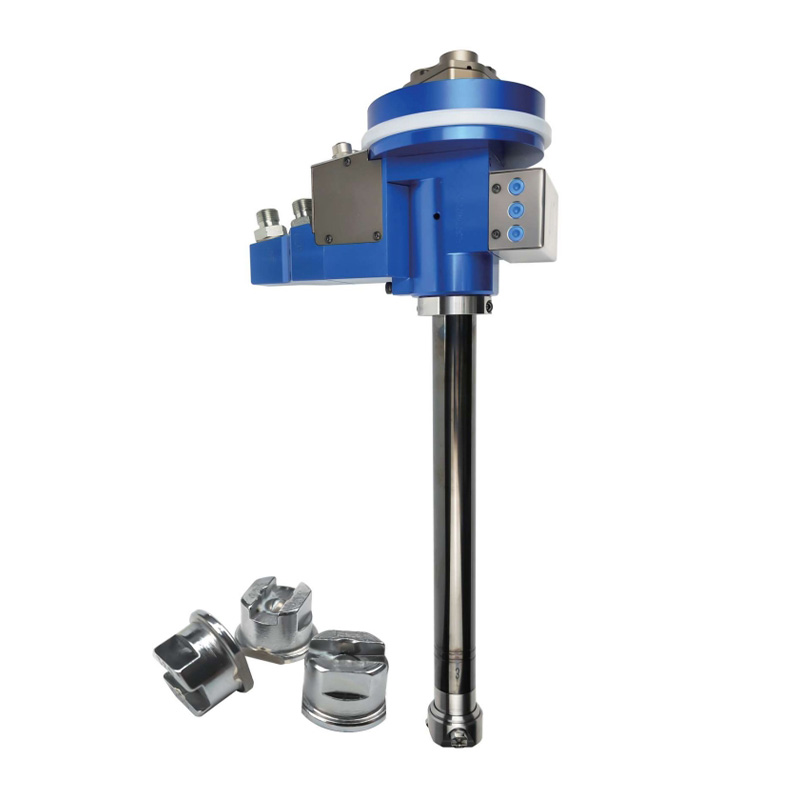

3D Glue Gun GV3558

  • Model: GV3558
  • The automatic glue gun GV3558 is usually used in the glue spraying system of the assembly workshop of the automobile factory. It can realize autonomous rotation spraying, reduce manual intervention, and improve the production efficiency of the workshop.
  • Real-time monitoring of temperature and pressure
  • Integrated circulation in the gun
  • Multi-directional spraying

GV3558
GV3558
Specification Description Related Products Contact Us

Specifications

Main Parameters

Parameter nameParameter informationNotes
Weight6kg
LengthDepends on nozzle type
Gun diameter30mm
Nozzle diameter48mm
Rotation height150mm
InstallationRobot mounting flange
Maximum working pressure250bar
Maximum working temperature65℃
Feed portMale thread 3/8 BSP connector
Circulation portMale thread 3/8 BSP connector
Air port8mm
Minimum air pressure4bar
