Manual Gas Drive Heating Gun GHA000

  • Model: GHA000
  • Electric heating type
  • The manual glue gun GHA000, the design of the electric heating module, can keep the constant temperature and improve the viscosity stability of the glue.
  • Fast response speed
  • The air drive design ensures the reliability of the gun and the faster response speed.

GHA000
Specification Description Related Products Contact Us

Specifications

Main Parameters

ModelRated air pressure(MPa)Recommended fluid pressure (MPa)Maximum fluid pressure (MPa)Recommended fluid viscosity (Pa*s)Rated heating power(W)Notes
GHA0000.3~0.8≤3241≤1000200
Notes

Other Parameters

ItemGHA000Notes
Paint interfaceGun body interface: NPT (f) 1/4
Adapter: NPT (f) 1/2		Standard adapter
Air source interfaceOD6-ID4Nut locking type
Rated voltageAC220VStandard male and female connectors (press-fit pins, female holes)
Recommended applicable temperature20~60℃High temperature applications, be careful to avoid burns
Weight1.78kgAdapter parameters are not included
Dimension reference287*287*65Gun nozzle parameters are not included
Wet area materialFKM; PTFE; UPE; PU; SST; Brass; Alloy Steel
Rated heating200W/220V ACGrounding configuration
Temperature sensorPT100
Installation directionAny
Control air pressure0.3-0.8MPa*: Configure auxiliary gun closing spring; cut off air, valve needle is closed

Description

Details

  • Manual air-driven electric heating glue gun GHA0000 is mainly used in automobile assembly plant and other extrusion coating workshop for dispensing work.
  • Compared with the ordinary manual glue gun, GHA000, a new heating module is added to keep the internal temperature of the gun body constant and the viscosity of the colloid, which solves the problem that the ambient temperature affects the viscosity of the colloid.
  • In addition, this manual glue gun also uses air drive to ensure the reliability of closing the muzzle during use and faster response speed.

Product advantages

  • Air-driven control switch gun
  • The glue gun uses an air-driven control switch gun, which has a fast response speed and is safer and more stable
  • Adding an electric heating module
  • The glue gun adds a heating module to ensure that the colloid temperature is constant and the colloid viscosity is stable during glue application
  • Better opening adjustment
  • The glue gun adds a heating module to ensure that the colloid temperature is constant and the colloid viscosity is stable during glue application

Application Cases

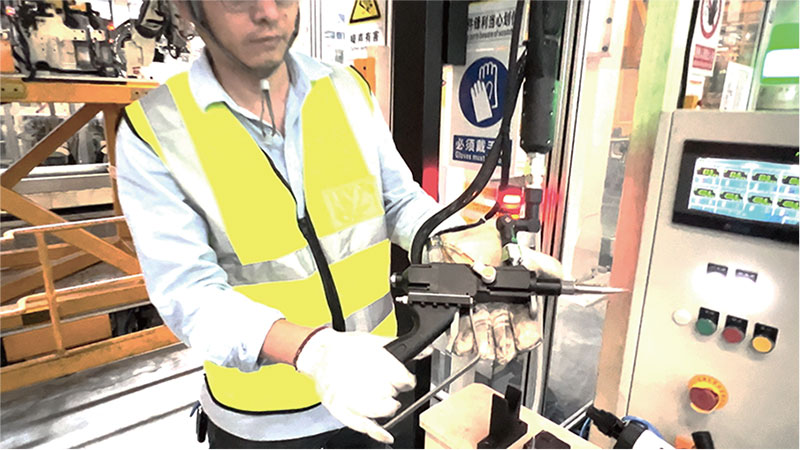

Manual extrusion glue gun Changan workshop application

In the actual application process, the glue gun sprays evenly and stably, and the gun is turned off and on quickly.

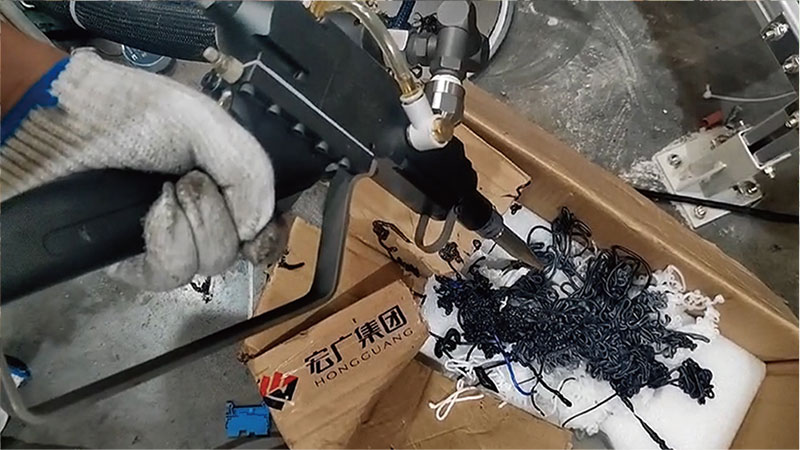

Application of manual extrusion glue gun in digital model

In the actual application process, the glue gun sprays evenly and stably, and the gun is turned off and on quickly.
