Automatic Rotating Glue Gun GR4000

Model: GR4000
Long service life
The automatic rotating rubber gun GR4000 optimizes the relevant structure through reasonable and excellent design, thus prolonging the service life.
Low rotary torque
According to the actual application scenario, the GR4000 automatic rotating glue gun is designed and improved to optimize the structure to achieve lower rotary torque.

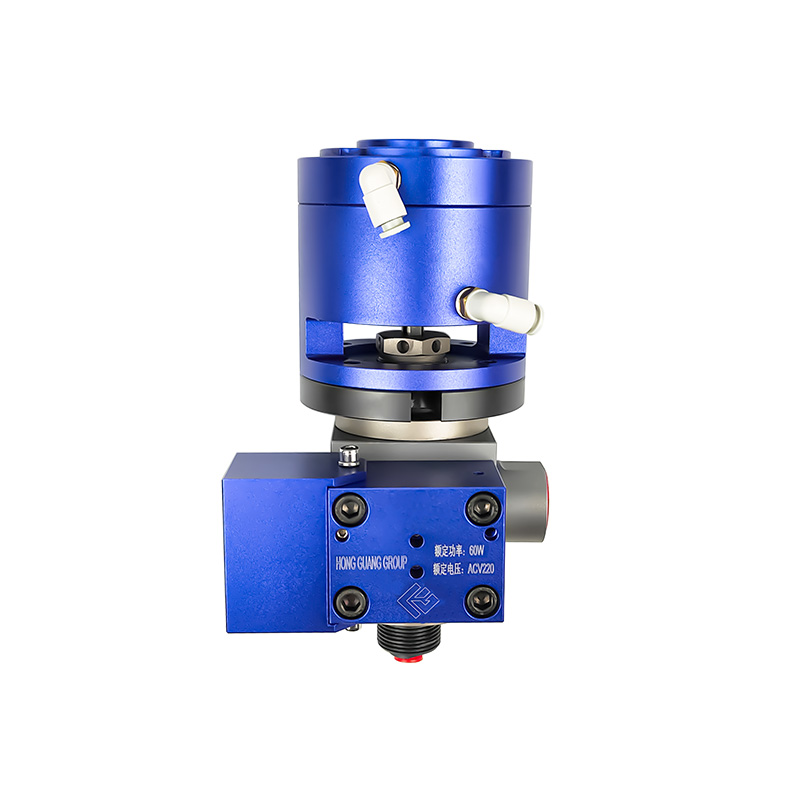

Heating type, can ensure the viscosity of the glue is stable
Heating module can be added
You can choose to add a heating module to maintain a constant temperature inside the gun body, thereby ensuring the stability of the viscosity of the colloid
Maximum fluid pressure 41MPa
The maximum fluid pressure applicable to this rotary glue gun is 41MPa

Specifications

Model	Rated air pressure MPa	Recommended fluid pressure MPa	Maximum fluid pressure MPa	*Recommended fluid viscosity PaS**	*Spindle rotation torque Nm**	Notes
GR4000	0.4~0.8	≤30	41	≤1000	≤3
GR400H	0.4~0.8	≤30	41	≤1000	≤3
Notes		Air pressure related	Air pressure related		No load

Item	GR4000	GR400H	Notes
Paint interface	1/2npt(f)
Air source interface	D6-Rc1/8		Standard φ6 socket (if replaced, not less than this specification); Device interface Rc1/8
Electrical interface	—	P20-7B	Standard male and female connectors (welded pins, female holes)
Applicable temperature	20~70℃		High temperature applications, be careful of burns
Weight	2.9kg	3.3kg
Wet area material	FKM; PTFE; UPE; PU; SST;Brass; Alloy steel
Rated heating	—	60W/220V AC	Equipped with grounding
Temperature sensor	—	PT100
Installation direction	Any
Control air pressure	0.4-0.8MPa		*: Air is cut off, valve needle is in free state

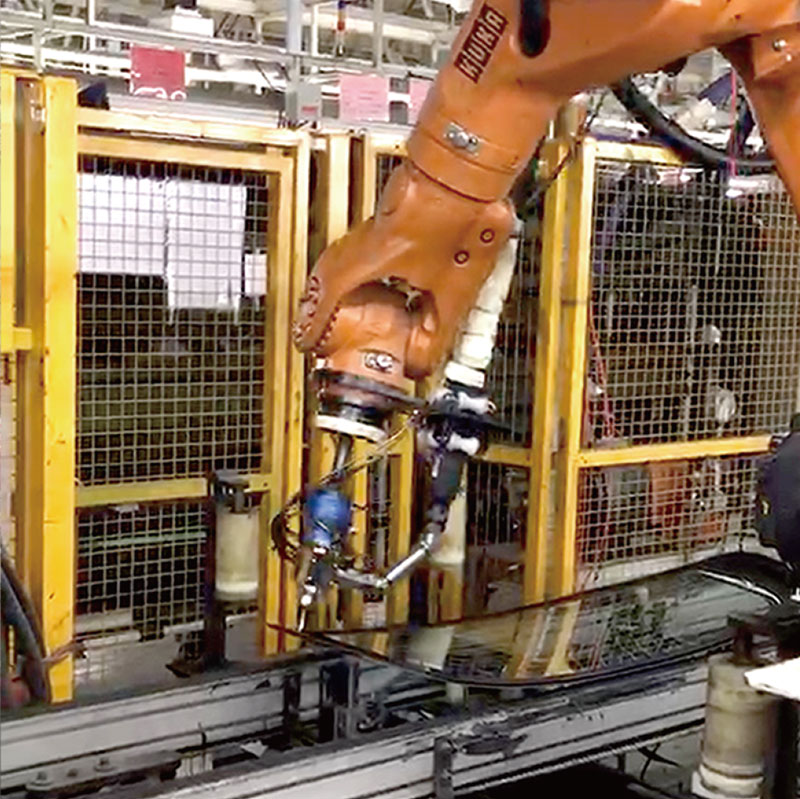

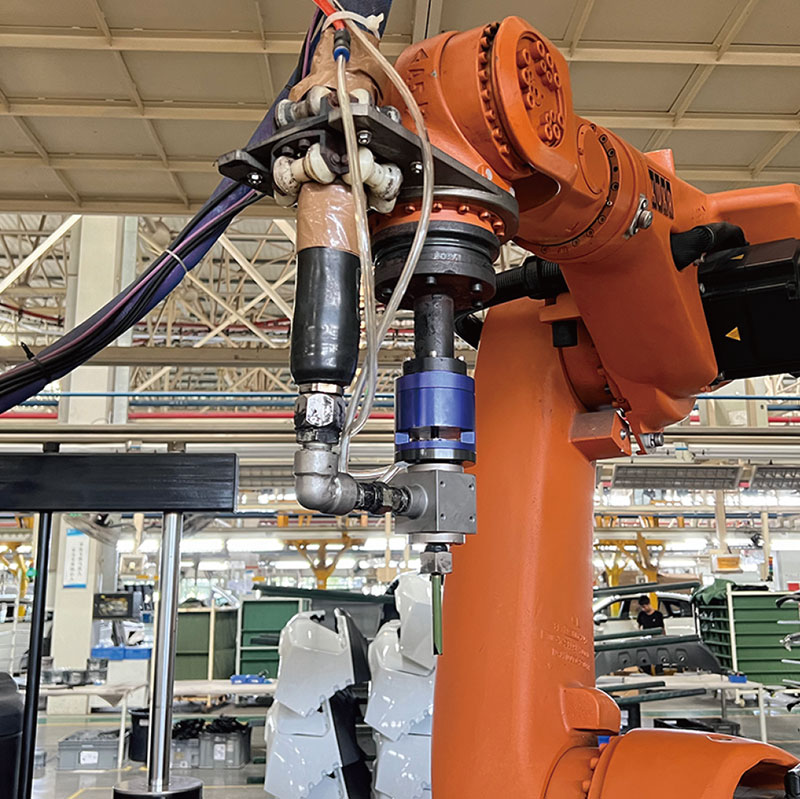

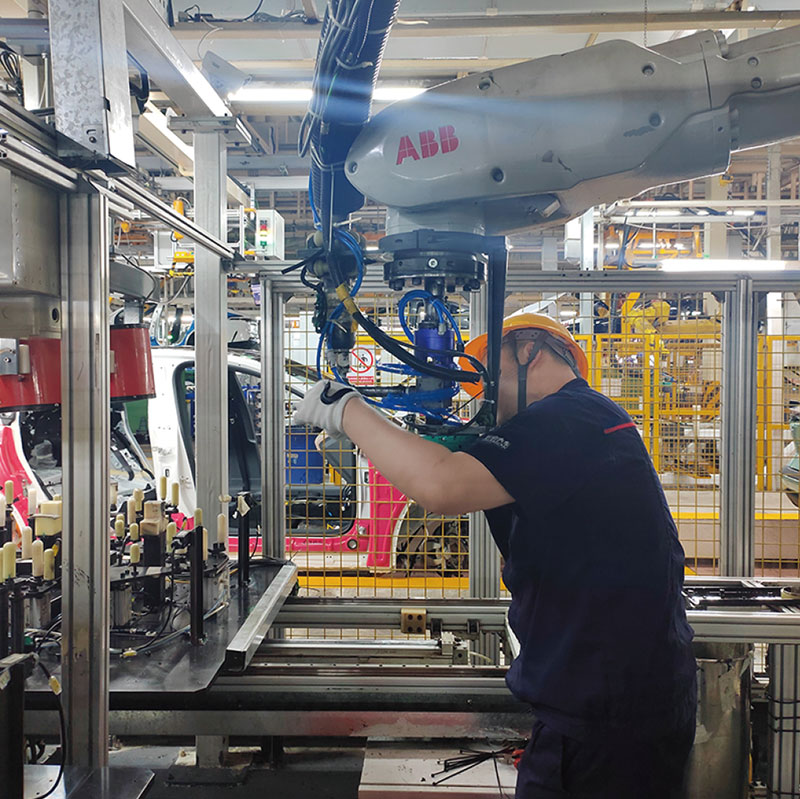

GR4000 automatic rotary glue gun is mainly used in the windshield glass coating system in the assembly workshop of automobile factory. It can also be used for the coating of other high viscosity materials ( contact us for evaluation before application ).
It can completely replace the same type of product SHIHANG SH02-302-1. In the design process, the appearance structure is accurately calibrated to facilitate seamless replacement by users.
The actual product application environment conditions are very complex, and a variety of reasons have led to different degrees of low life and low rotary torque in the use of the same product. We take into account the relevant issues in the design process, and then optimize the processing, to a greater extent, improve the actual performance of the product.
