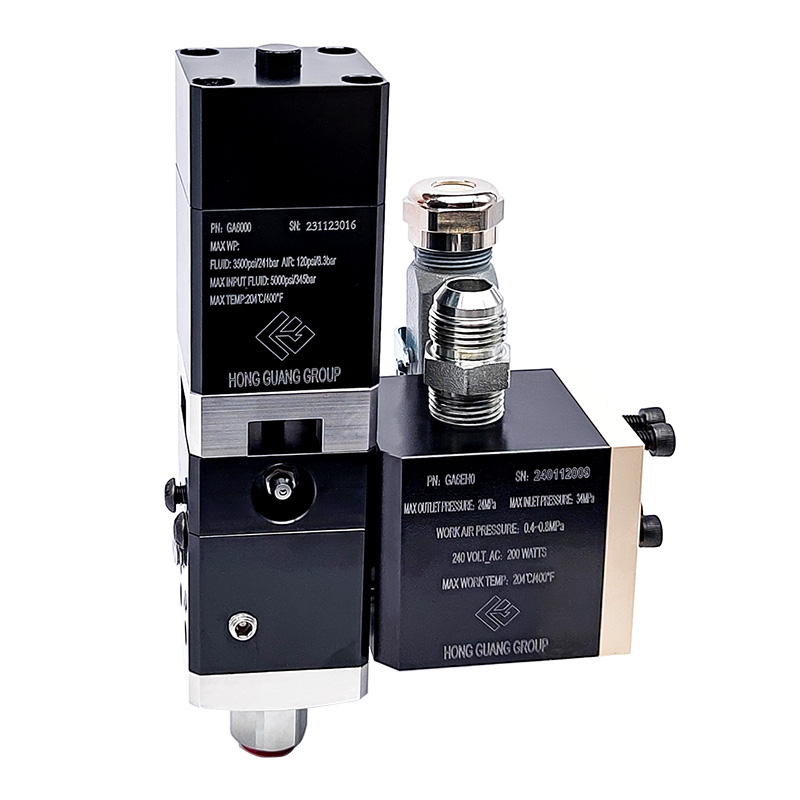

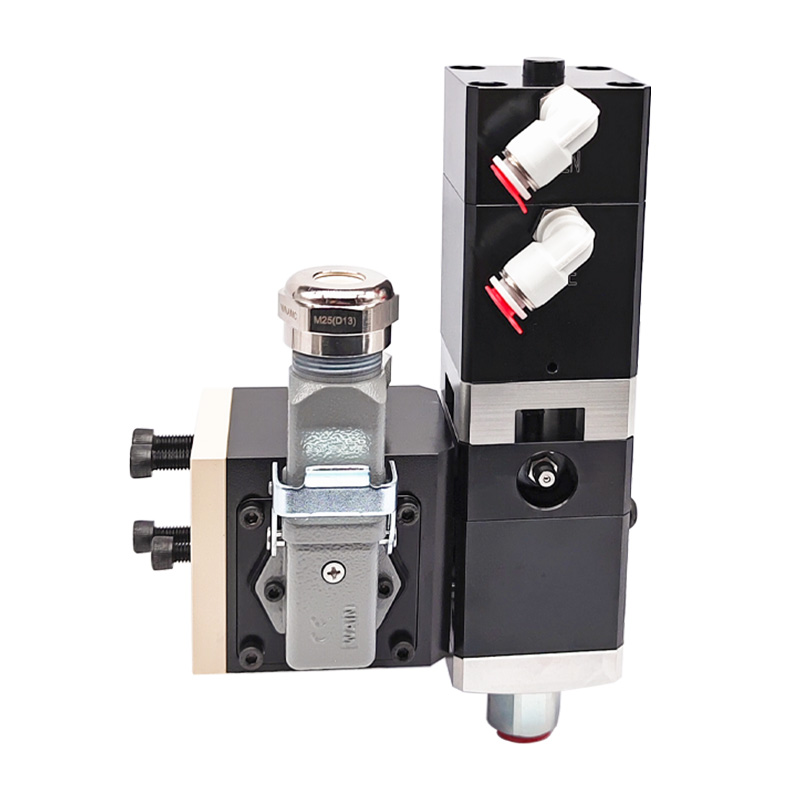

Automatic Glue Gun GA60EH

Model: GA60EH
Modularization

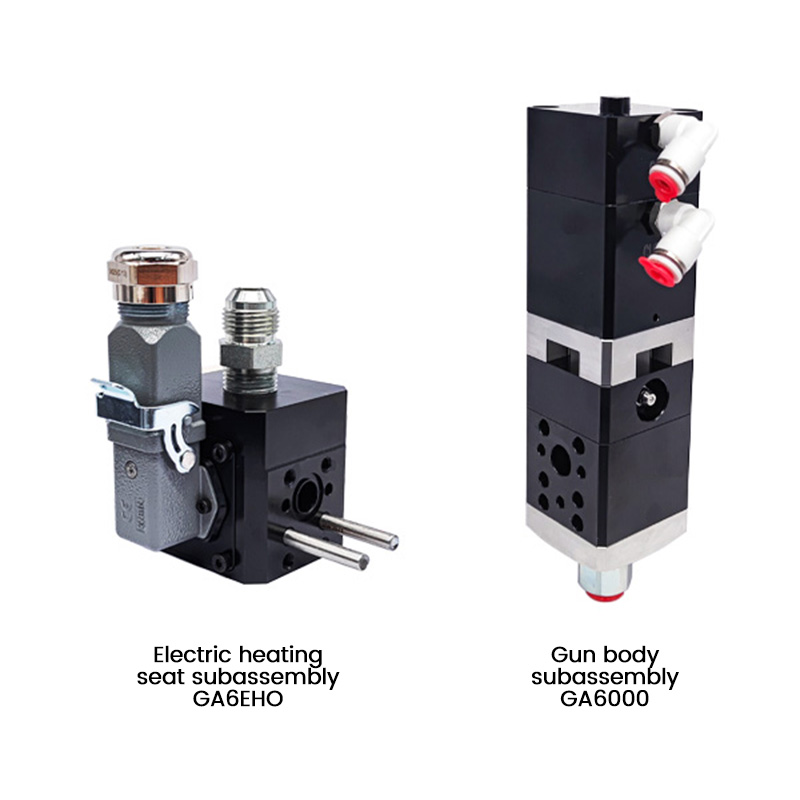

Automatic glue gun GA60EH, can be divided into gun body GA6000 and electric heating seat GA6EH0
Electric heating type
The temperature in the gun and the viscosity of the colloid can be kept stable.
Long life
Compared with similar products, it has a longer service life
Heating module can be added
You can choose to add a heating module to maintain a constant temperature inside the gun body, thereby ensuring the stability of the viscosity of the colloid
Maximum fluid pressure 34MPa
The maximum fluid pressure applicable to this rotary glue gun is 34MPa

Specifications

	Rated air pressure(MPa)	Air pressure specification (Rc)	Rated inlet pressure (MPa)	Rated outlet pressure (MPa)	Remarks
GA60EH	0.4~0.8	1/8	34	24	Electric heating gun seat, gun body assembly
GA6000	0.4~0.8	1/8	34	24	Gun body subassembly
GA6EHO	—	—	34	34	Electric heating gun seat subassembly
Remark		Comes with ID8 air quick-plug interface

Item	GA60EH	GA6000	GA6EHO	Remarks
Feed port specifications	1/2NPT(f)	Diameter 12mm	1/2NPT(f)	NPT interface comes withJC(m)7/8-14 connector
Rated voltage	240V AC	—	240V AC
Rated heating power	200W	—	200W
Maximum operating temperature	204℃/400°F
Wet area material	PEEK, PTFE, FKM, AL, SST alloy steel, tungsten carbide
Equipment weight	2.5	1.6	0.9
Installation direction	All

Automatic glue gun GA60EH, this glue gun has a heating module, which can keep the temperature and the viscosity of the glue in the gun when used ; at the same time, it can be split into two parts : gun body and electric heating seat, which is convenient for replacement.
The heating module can be purchased separately.
